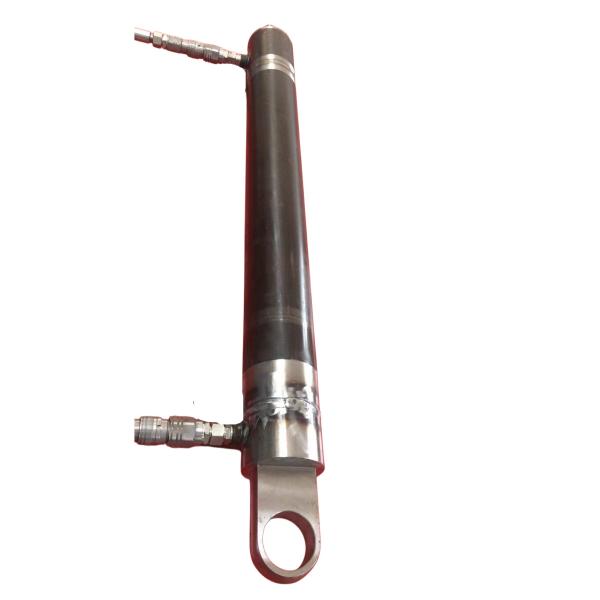

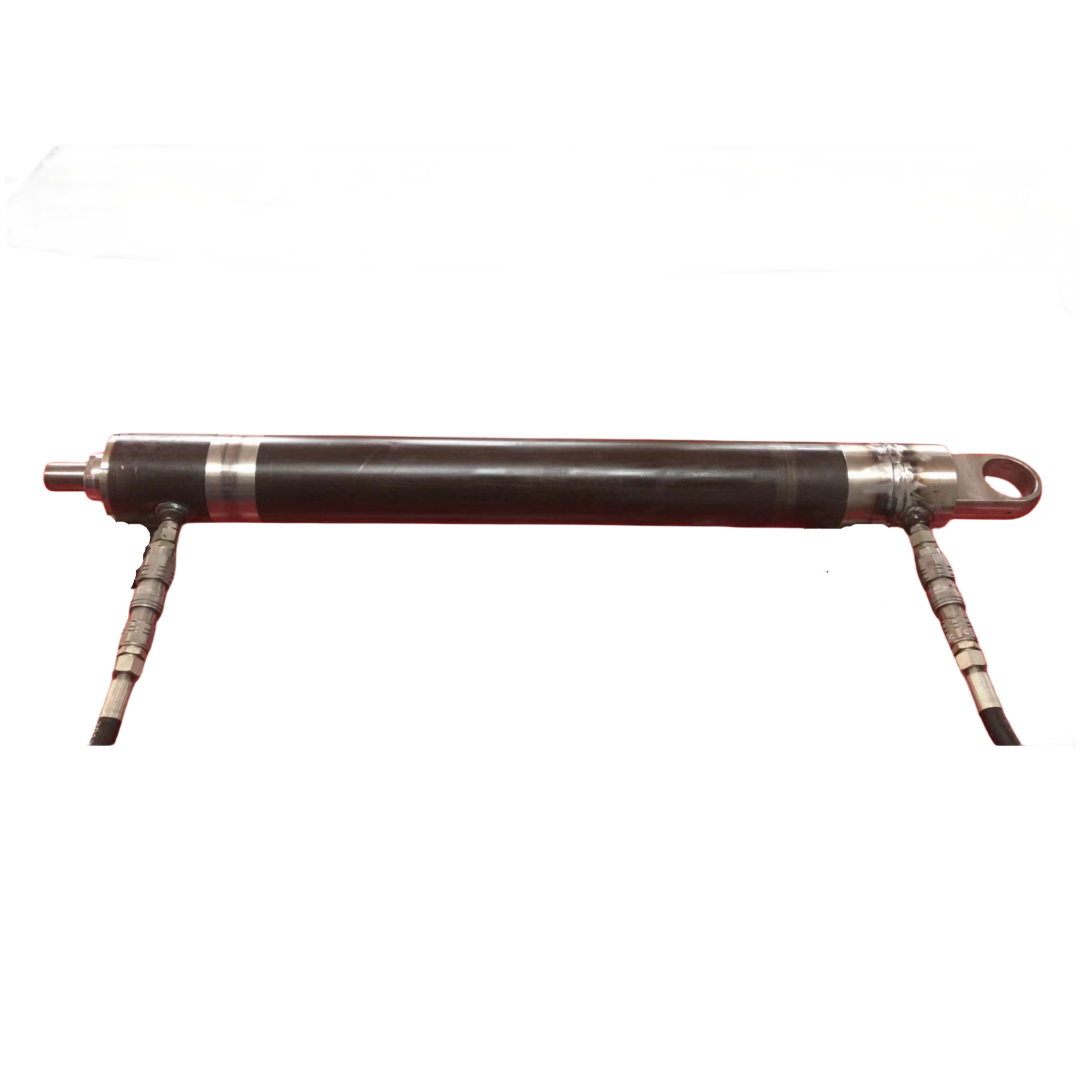

Customized Single Acting Hydraulic Cylinder 100 70-880 Compression Cylinders

Premium Quality Hydraulic Cylinders - Quality Assured

1. Internals:Cylinder barrel adopts GUOYUE EU/US metallurgical standard CD250 structure. Barrel material: 45#, 42CrMo, or 27SiMn. Bore honed to H8 precision with surface roughness Ra<0.4μm. Heads, base, trunnions, and pistons are exclusively made of 45# steel; no cast iron or cast steel components are used.
2. Buffering:Multiple buffering options including fixed and floating buffer structures to ensure effective deceleration across various pressures and speed ranges.
3. Welding:100% ultrasonic impact treatment applied to all pressure-bearing and load-critical welds. This eliminates weld stress (removal rate ≥90%) and significantly enhances weld fatigue strength.
4. Sealing:All cylinders exclusively use premium imported seals from Japan NOK, Sweden Trelleborg, Germany Merkel, and GP. No domestic seals are utilized.
5. Testing &Certification:Factory testing strictly complies with GB/T15622-2005 "Hydraulic Fluid Power - Test Methods for Cylinders" and internal premium standard Q/GAKY014-2023. Includes provision of factory test reports and product qualification certificates.
6. Warranty: One-year warranty from shipment date. Free repair or replacement provided for defects arising from design or manufacturing within the warranty period.

Key Advantages:
Cost-Effective Simplicity: Single-port design reduces valve/hose costs by 40%.
High Compression Force: 100mm bore delivers ≥15.7 tons thrust (at 200 bar).
Long-Stroke Stability: 880mm stroke with anti-buckling guide sleeves (70mm rod).
Low Maintenance: Spring/gravity retraction eliminates rod seal wear.
Custom Protection: Hardened chrome rod + wiper seal for debris-prone environments.

---

Core Applications :
1. Industrial Presses: Scrap baling, powder compacting.
2. Agricultural Machinery: Hay balers, silo compactors.
3. Material Handling: Dock levelers, vertical lift gates.
4. Construction: Pile driving, modular formwork.
5. Recycling Plants: Cardboard/plastic compression rams.
6. Railways:Coupler compression test rigs
